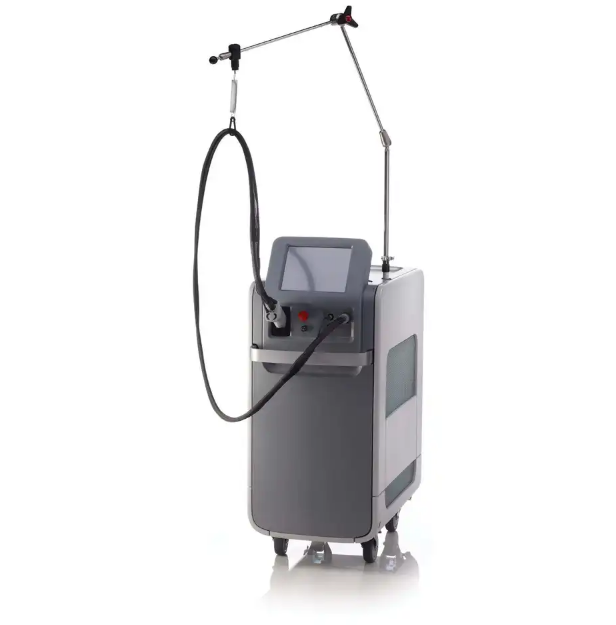

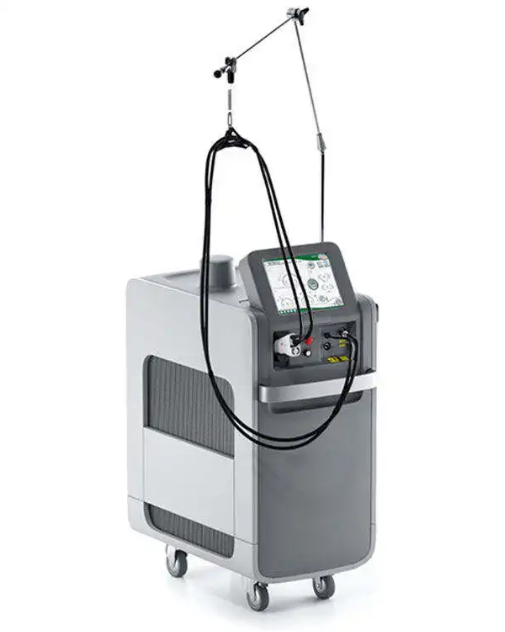

New CANDELA GentleMax Pro

New CANDELA GentleMax Pro

Regular price $19,299.00 USD
Regular price $19,999.00 USD Sale price $19,299.00 USD
Sale Sold out
Quantity

🔬 Core Technology:

Dual Wavelength Alexandrite + Nd:YAG Laser System

  • 🟢 755nm Alexandrite — the "Gold Standard" for hair removal on lighter skin tones (Fitzpatrick I-III); also treats pigmented & superficial vascular lesions
  • 🔵 1064nm Nd:YAG — extends treatment to darker skin types (Fitzpatrick III-VI) & deeper vascular issues

⚡ Full Technical Specifications:

Parameter Specification
Wavelengths 755nm & 1064nm
Energy 100J @ 1064nm / 60J @ 755nm
Pulse Width 10-100ms
Pulse Frequency 0.5 / 1 / 1.5 / 2 / 5 / 10 Hz
Spot Sizes 6/8/10mm & 12/15/18mm (optional 20/22/24mm)
Cooling System Water cooling (5-25°C auto control)
Skin Cooling DCD (Dynamic Cooling Device) OR ACC (Air Cooling -15°C)
Power Supply 3,680 Watts
Fiber Delivery USA Thorlabs fiber — 1.6mm diameter / 2500mm length
Lamps 4 pieces — Made in UK
IGBT Parts Made in Japan
Capacitance 52,500μf
Display 10-inch Digital Real Color LCD Touch Screen
Material ABS & Stainless Steel
Weight 95kg Net / 135kg Gross
Dimensions 400 x 800 x 1150mm
Warranty 2 Years

✨ Key Features:

  • 🎯 Auto Calibration Function — automatically calculates fluence before each treatment, compensating for lamp age, fiber wear & optics condition — ensuring consistent, accurate results every time
  • ❄️ DCD Dynamic Cooling — precise bursts of non-toxic coolant milliseconds before laser pulse — evaporates instantly, zero residue, maximum skin protection
  • 🌬️ ACC Air Cooling — continuous contact cooling (-15°C) for ultimate patient comfort
  • 🏆 Premium Components — UK lamps, USA Thorlabs fiber, Japanese IGBT parts
  • 🖥️ 10-inch Touch Screen — intuitive single-chip digital control system
  • 🔧 OEM/ODM Available — custom branding & logo supported

🎯 Treatment Areas & Indications:

  • 💇 Permanent Hair Removal — face, body, legs, arms, hands, armpits, bikini line
  • 🩸 Vascular Lesions — veins & vessel removal
  • 🌟 Pigmented Lesions — sun spots, pigmentation
  • Skin Tightening & Rejuvenation
  • 🖋️ Tattoo & Wrinkle Removal

📊 Why It Outperforms Competitors:

Technology Sessions Needed Risk
Alexandrite 755nm 1-2 sessions Minimal
Nd:YAG 1064nm 3-4 sessions Safe for dark skin
⚠️ Diode 808nm 5-6 sessions Moderate
❌ IPL 6-10 sessions Burns risk

📦 Package Includes:

  • ✅ 1x Main Laser Machine
  • ✅ 1x Handpiece (DCD or ACC version — your choice)
  • ✅ Full lens cap set (6/8/10/12/15/18mm)
  • ✅ USA Thorlabs fiber delivery system
  • ✅ Universal power cord (CN/JP/US/EU/AU/UK/IT)
  • ✅ Professional export packaging

🏆 Certifications:

  • CE Certified — EU Standards Compliant
  • LVD — Electrical Safety Compliance
  • RoHS Compliant
  • Verified by TÜV Rheinland

🔬 Key Features & Description:

  • Long Pulse Technology — precisely targets hair follicles with controlled pulse duration for safe, effective & permanent hair reduction
  • 🌊 Wavelength: 1064nm (Nd:YAG) — deep penetration suitable for all skin types including darker skin tones (Fitzpatrick IV-VI)
  • ❄️ Integrated Cooling System — sapphire contact cooling protects skin surface during treatment, maximising comfort

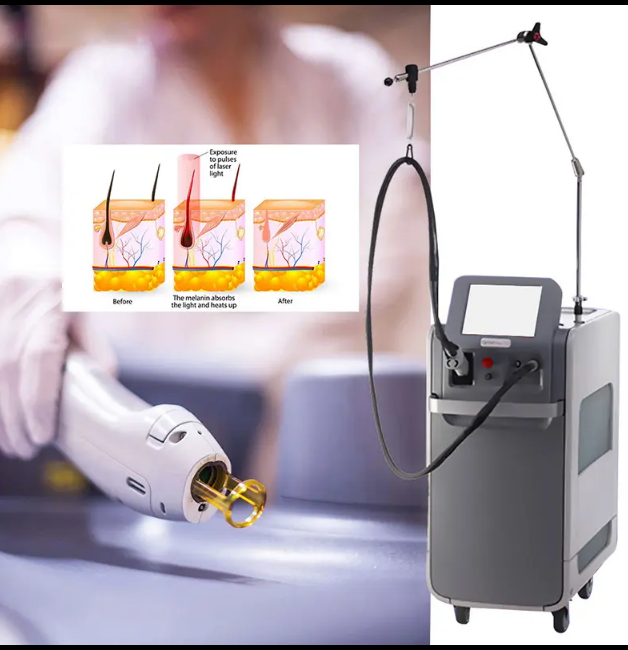

  • 🎯 Selective Photothermolysis — destroys hair follicle while leaving surrounding tissue unharmed
  • 💆 Pain-Free & Comfortable — suitable for sensitive areas (face, bikini, underarms)
  • ⏱️ Fast Treatment Speed — large spot size covers wide areas quickly
  • 🔁 Permanent Hair Reduction — clinically proven long-lasting results
  • 🏥 Professional Clinic Grade — trusted by dermatologists & aesthetic clinics worldwide
  • Suitable for All Body Areas — face, legs, arms, back, bikini line & more
  • 🔌 Universal Voltage — 100-240V compatible
Product Description
1. Dual Wavelength: Alexandrite 755nm & Nd:YAG 1064nm
Maximize versatility by combining 755nm and 1064nm wavelengths—effective on all skin types and hair thicknesses.

2. Powerful Combination: 755nm & 1064nm
From hair removal to vascular and pigmented lesions, this dual-wavelength system expands your treatment capabilities.

3. 755nm Alexandrite Laser
The gold standard for hair removal in lighter skin tones; also effective for pigmented and superficial vascular lesions.

Cooling Options:
Each wavelength is available with your choice of DCD (Dynamic Cooling Device) or ACC (Air Cooling with Contact Cooler), ensuring optimal epidermal protection and patient comfort.

4. Technical Sheet
Items
Details
Control
Monitor
10 inches Digital Real Color LCD
Interface
Touch
Control system
Single chip
Headpiece
Headpiece/spot-size
Headpiece with slider, Lens cap=6,8,10mm, Lens cap=12,15,18mm Lens cap=20,22,24mm (optional).
Headpiece cooling
ACC cooling+fan cooling
Calibration function
Cali port
Inside chamber and headpiece holder
Cali degree
By each parameter
Cooling
Cooling system
Water cooling
water temperature
5-25 ˚C auto control
Skin cooling
ACC air cooling -15 to -15 ˚C
Interface
Energy
100J @ 1064nm, 60J@755nm
Pulse width
10-100ms
Fluency J/cm²
5-22J/cm² at 1064nm, 5-15J/cm² at 755nm
Spotsize
6/8/10mm, 12/15/18mm, 20/22/24mm (optional)
Pulse frequency
0.5Hz, 1Hz,1.5Hz ,2Hz,5Hz,10Hz
Pilot beam
520nm green laser
Power system
Power supply part
3680 watts
IGBT part
Made in Japan
Capacitance capacity
12500uf/40000uf
In charge voltage
400-800V DC
Capacitance
12500+40000=52500uf
Laser board
Lamp
100x176x10mm Made by UK
Lamp amounts
4 pieces
Rod
Alexandrite Rod 755nm+ND Yag Rod
LBO
PP-LN
Wavelength output
755nm+1064nm
Fiber
Laser fiber
Made by USA, Thorlabs
Fiber spec
1.6mm diameter with 2500mm length
Alarm
Water circulation
Yes
Water speed
Yes
Fiber insert
Yes
DCD over heat
Yes
Lamp over load
Yes
Filter
Filter
PP+DI filter
Size & Weight
Size
400(W)x800(L)x1150mm(H)
Net weight
95KG

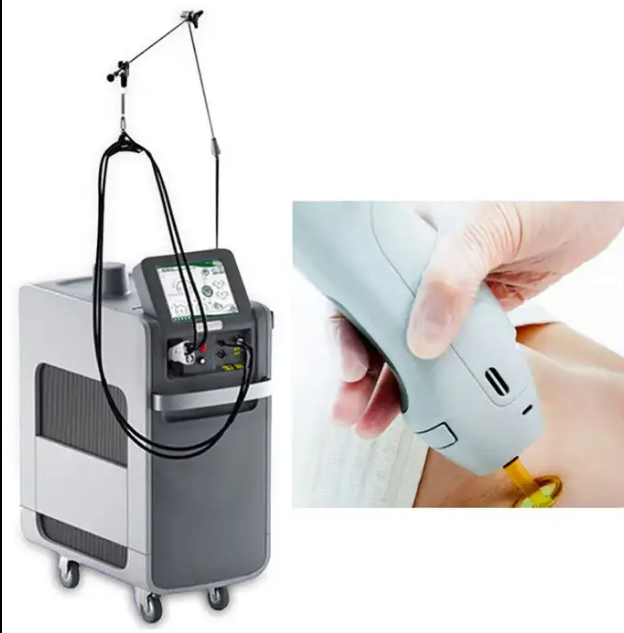

5. Headpiece Design

According to the device, the headpiece chosen should depend on your purpose of using. You can choose either DCD headpiece or ACC headpiece or both.
6. Treatments Before & After photos
7. DCD Cooling
DCD Skin Cooling System
Efficient:
Delivers only the coolant needed per treatment, minimizing waste with no cleanup. Costs just fractions of a cent per pulse.
Consistent:
Each laser pulse delivers the same amount of coolant. User sets the level; the laser controls it—ensuring reliable results every time.
Comfortable:
Precise bursts of non-toxic coolant protect the skin milliseconds before each pulse. It evaporates instantly—no residue, no obstruction.
8. ACC Air Cooling
Air cooling system, it is your choice

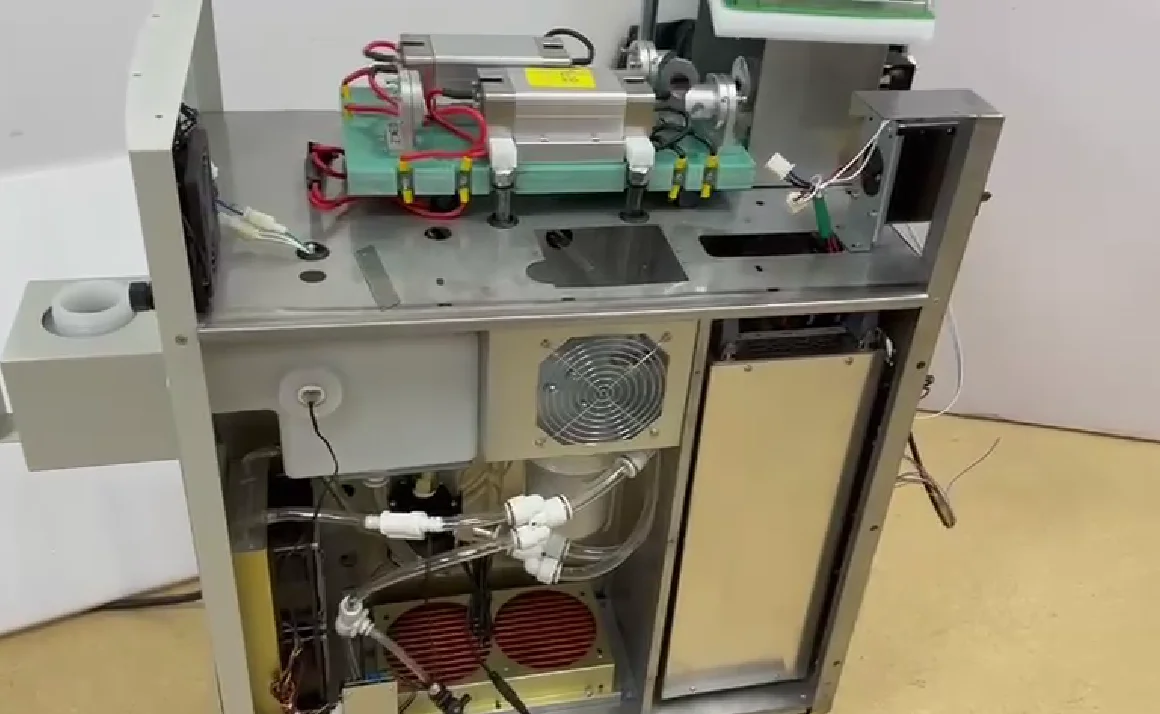

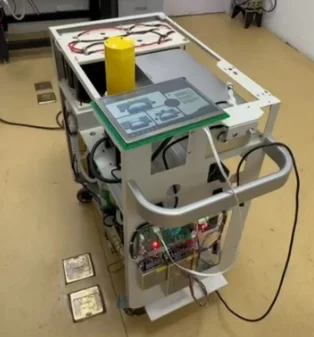

9. Components and Structures Design

You can also contact us for a video to show the components and structures design.
ACC Version
DCD Version

10. Spotsize

How the Calibration Function Processes?

The Calibration function is very important especially to caculate the fluence before treatment, due to
a. The lamps has a life span,
b. The fiber would be exausted,
c. Protect windows maybe dirty or burnt,
d. if any optical problem...
So to make the Calibration before the treatment is very necessary...

11. Different manners to remove hair.
Commercial Hair Removal with different types of devices
Device Name
Wavelength
Sessions
Skin type
Side-effects
Alexandrite laser
755nm
1-2 sessions
I-V
no
Yag laser
1064nm
3-4 sessions
III -V
no
Diode laser
808nm
5-6 sessions
II-IV
no
IPL
640-1200nm
6-10 sessions
III-IV
Burn skin
Wax scream
no
no
no
Damage skin
755, 1064
0.25
520
10
alexandrite
